# Garmin App

The openHAB Garmin app connects your Garmin wearable to your openHAB (opens new window) smart home system, giving you convenient access to essential devices and real-time information.


Get it on Connect IQ Store

# Introduction

This app is built on the foundation of openHAB sitemaps, which define an interactive view of your openHAB model. A sitemap allows you to specify which devices are accessible through the app and how they are organized and presented.

The app consists of two components: the Glance and the Widget. The Glance displays the name of the sitemap and acts as the entry point into the full-screen Widget, which shows the sitemap's content.

Once opened, the Widget polls the sitemap at a configurable interval to fetch updates. Commands are sent to openHAB via its JSON-based REST API. If your openHAB setup does not support this API, you can alternatively configure a custom Webhook.

Inside the Widget, sitemap elements are displayed as Sitemap Widgets.

::: note The term "widget" is used by both Garmin and openHAB to mean different things, which can be a source of confusion. In this manual, "Widget" refers to the Garmin app component, while "Sitemap Widget" refers to individual elements defined in the openHAB sitemap. :::

The following sections provide detailed guidance on configuring the app, supported Sitemap Widgets, user interface behavior, and troubleshooting tips.

# Configuration

Once the app is installed, you can configure the following settings by opening it in the Garmin Connect IQ smartphone app.

Setting Description
URL Your openHAB URL in the format https://host:port or http://host:port. Note: HTTP only works with iOS. See Connectivity and Using myopenHAB for details.
Sitemap Name Name of the sitemap to display. See Sitemap Setup for details.
Native REST API Support Enable if your openHAB supports the new JSON-based REST API for sending commands. See Sending Commands for details.
Webhook Identifier If your openHAB version doesn't support the JSON-based REST API (see above), you can configure a custom webhook to send commands. See Sending Commands for details.
Username For basic authentication (used for myopenHAB, see below)
Password Password for basic authentication
Supress empty response errors Suppress errors for empty sitemap responses. Recommended when using myopenhab.org (opens new window), which occasionally returns empty results. See the related openhab-cloud issue #496 (opens new window) for details.
Polling Interval (ms) Interval between data requests to your openHAB instance. Set to 0 to fetch new data immediately after the previous response is processed. Polling only occurs while the app is open, not in the background. If you're using myopenhab.org (opens new window), it's recommended to use the default (3000 ms) or a higher value to avoid overloading their servers. If you're connecting to your own openHAB server directly, you may try setting it to 0 for more responsive updates.

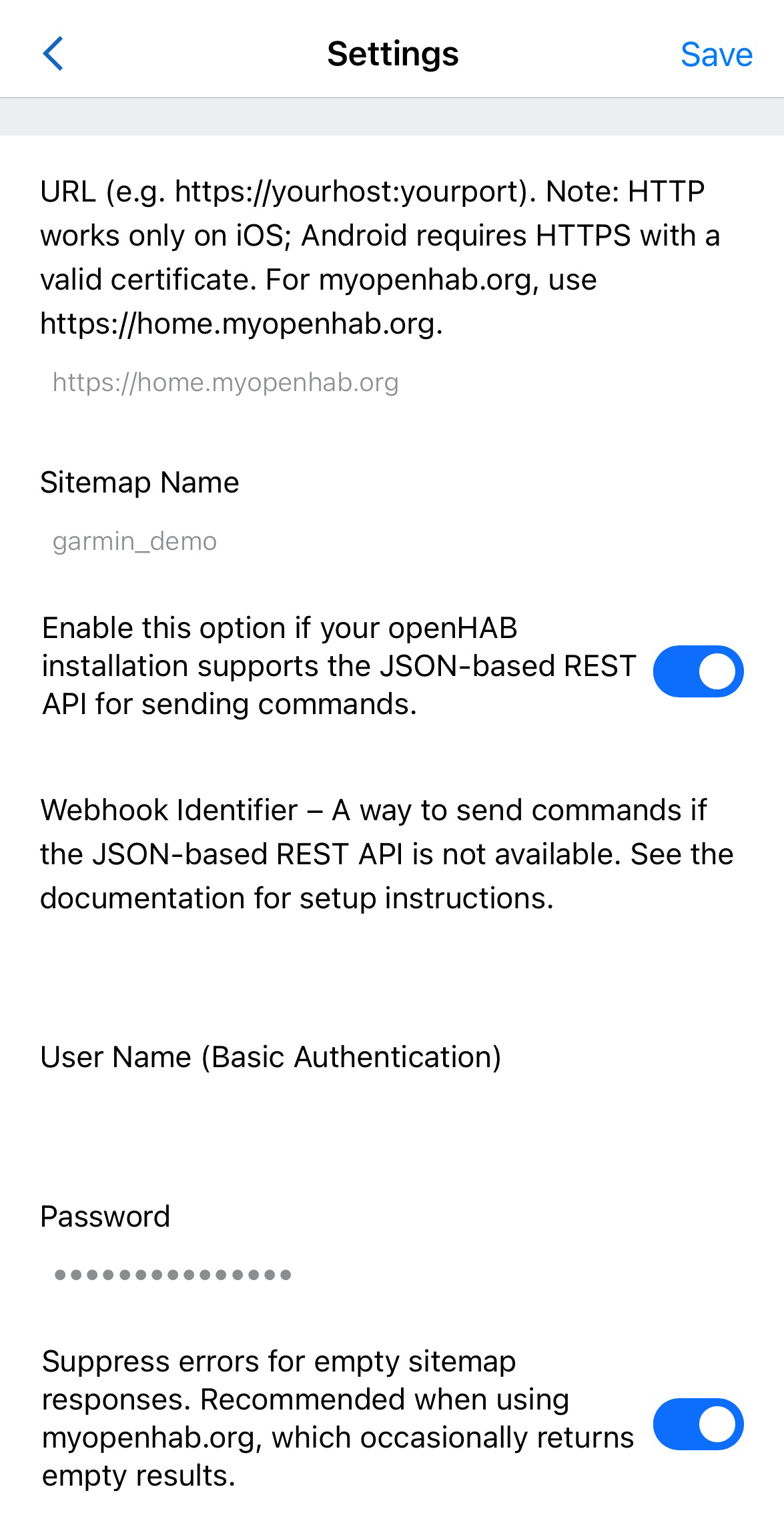

App Settings

# Connectivity

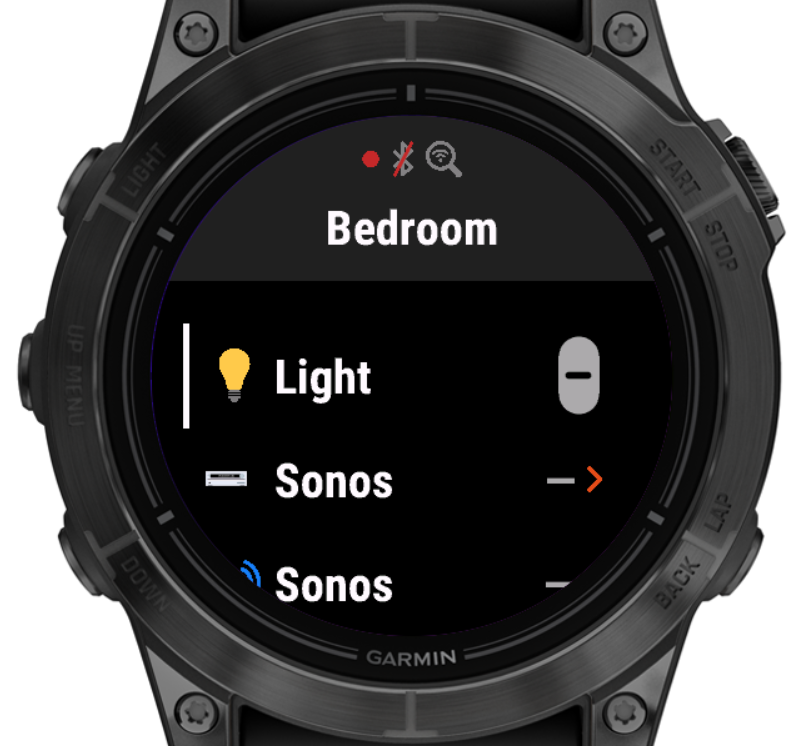

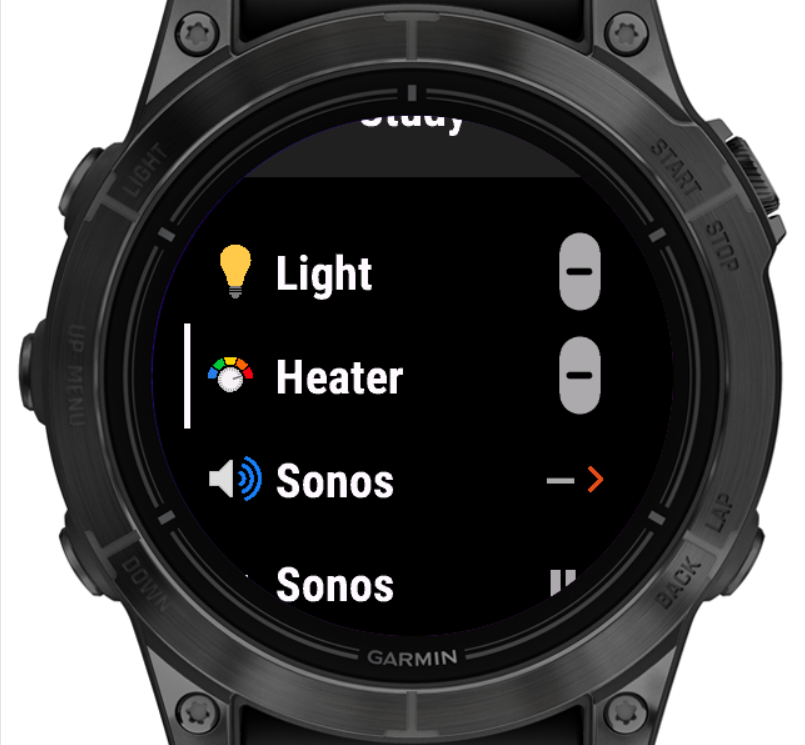

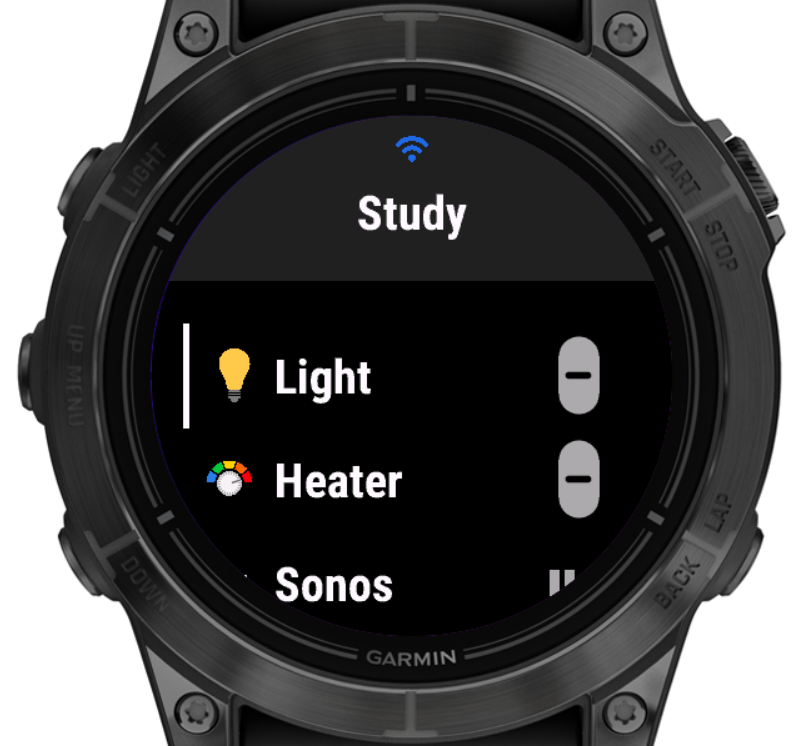

Garmin wearables rely on your smartphone for network access. If your phone can reach your openHAB instance (e.g. via local network or VPN like Tailscale), the watch can too.

Platform-specific Limitations:

  • iOS: HTTP and HTTPS supported
  • Android: Only HTTPS with a valid certificate is supported due to Garmin SDK limitations

You can use myopenHAB (opens new window) to securely access your local openHAB instance over the Internet using HTTPS.

# Using myopenHAB

To connect using myopenHAB (opens new window):

  1. Install the openHAB Cloud Connector
  2. Register at myopenhab.org (opens new window)
  3. Set the URL in the app to https://home.myopenhab.org
  4. Use your myopenHAB username and password for authentication

# Sending Commands

Starting with openHAB 5.0, the REST API allows the app to send commands directly - no extra setup needed.

For earlier versions, you can either:

➡️ Install the backported API (available for openHAB 4.3.x)

To enable JSON-based command support on openHAB 4.3.x, install the backported API bundle.

Follow the instructions here: Backport Installation Guide (opens new window)

Note: If you update your openHAB version after installing the backport, you may need to reinstall the backport.

or

➡️ Set up a custom webhook

If your openHAB setup does not support the JSON-based REST API for sending commands, you can configure a custom Webhook using the Webhook binding instead.

Follow the steps below to set it up:

# 1. Install the Webhook Binding

Install the Webhook HTTP binding (opens new window).

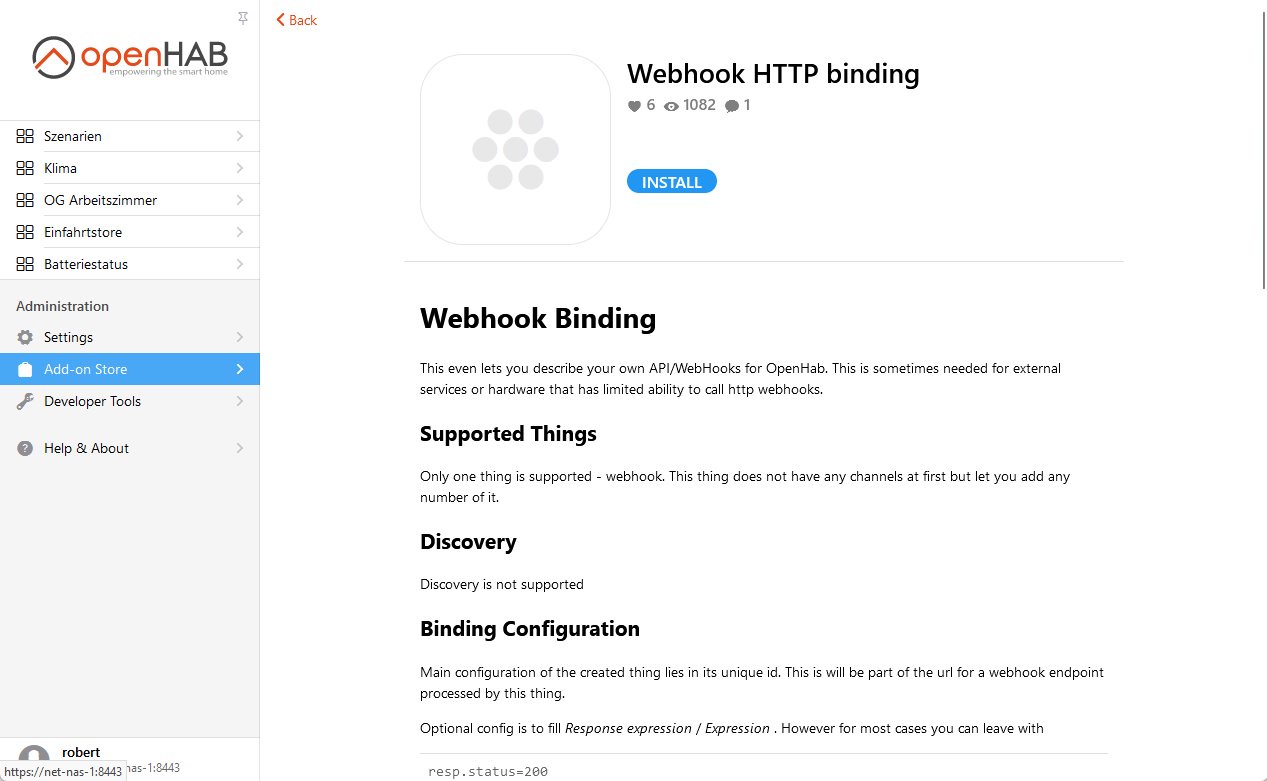

Web Hook Installation

# 2. Create a Webhook Thing

Create a new Webhook Thing.

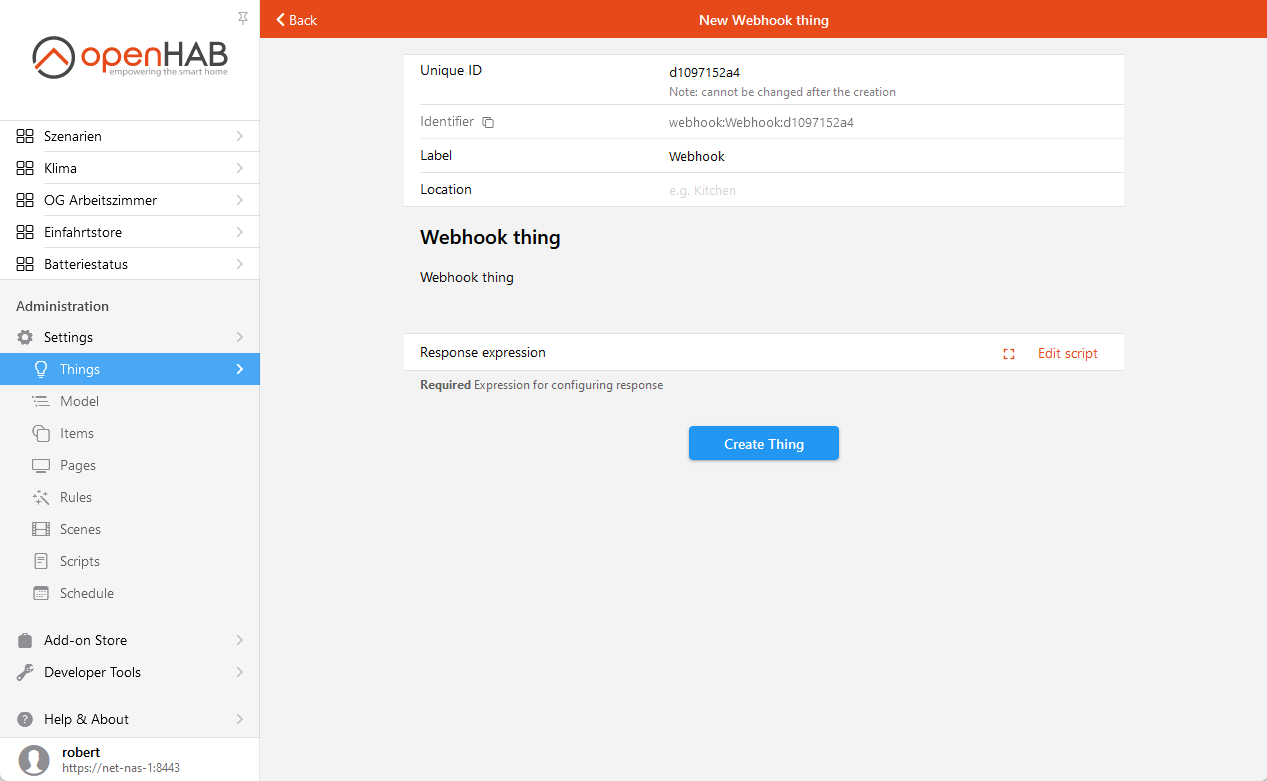

Thing Creation

Go to the Code tab and enter the following YAML (replace UID with your own):

UID: webhook:Webhook:d1097152a4
label: Webhook
thingTypeUID: webhook:Webhook
configuration:
  expression: resp.status=200
channels:
  - id: lastCall
    channelTypeUID: webhook:lastCall-channel
    label: Last request
    configuration: {}
  - id: trigger
    channelTypeUID: webhook:trigger-channel
    label: Trigger
    configuration:
      expression: >-
        {
          var gson = new("com.google.gson.Gson");
          var jsonRoot = {:}; var jsonBody = {:};
          if (!empty(req.body.text)) jsonBody.put("text", req.body.text);
          if (!empty(req.body.json)) jsonBody.put("json", req.body.json);
          jsonRoot.put("parameters", req.parameters);
          jsonRoot.put("body", jsonBody);
          jsonRoot.put("method", req.method);
          return gson.toJson(jsonRoot);
        }

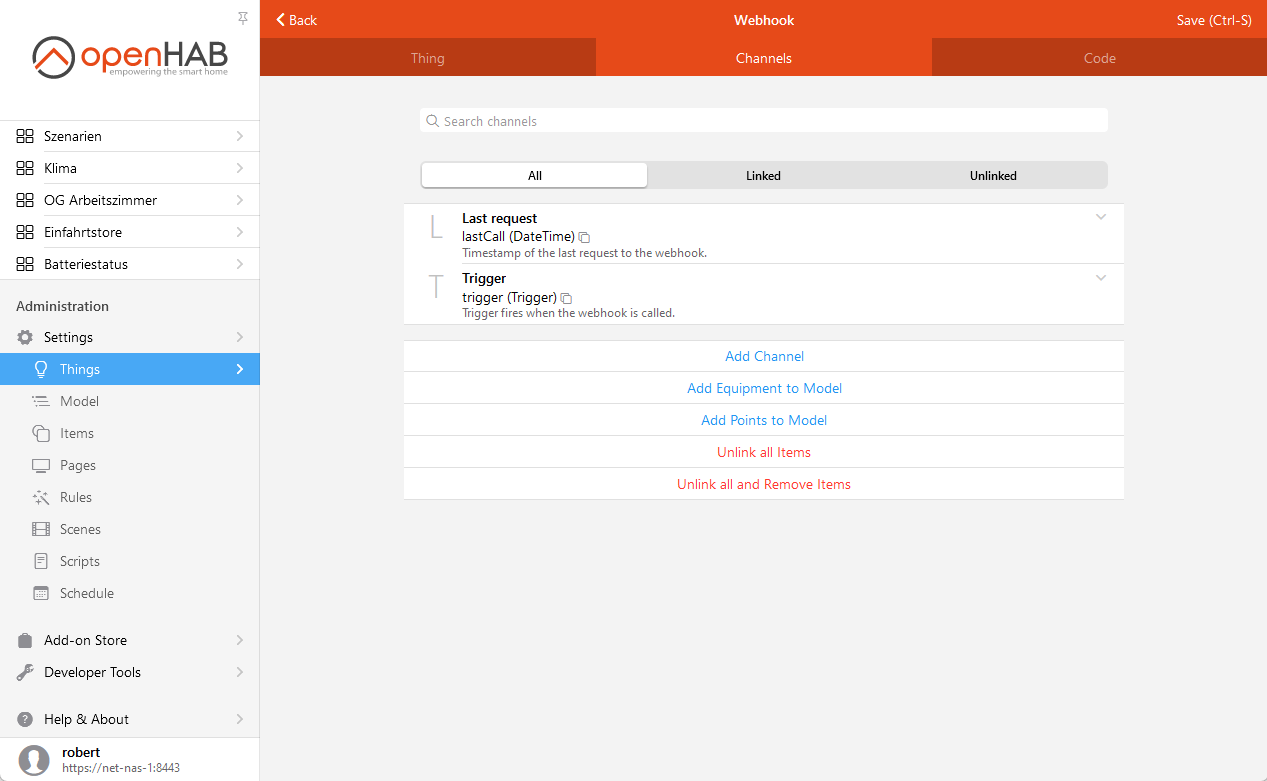

Thing Channels

# 3. Create a Rule with JavaScript

Create a Rule that triggers on webhook and runs this JavaScript:

var request = JSON.parse(event.event);

var action = request.parameters.action?.[0] ?? null;
var itemName = request.parameters.itemName?.[0] ?? null;
var command = request.parameters.command?.[0] ?? null;

if (action === "sendCommand") {
  if (itemName && command) {
    items.getItem(itemName).sendCommand(command);
  } else {
    console.warn(`Webhook: sendCommand missing parameters (itemName='${itemName}', command='${command}')`);
  }
} else if (action === "toggle") {
  if (itemName) {
    var item = items.getItem(itemName);
    item.sendCommand(item.state === "ON" ? "OFF" : "ON");
  } else {
    console.warn(`Webhook: toggle missing itemName`);
  }
} else {
  console.warn(`Webhook: invalid or missing action '${action}'`);
}
Parameter Description
action "sendCommand" or "toggle"
itemName Name of the item to control
command Command to send (for sendCommand)

# 4. Test & Connect

You can test the webhook by visiting:

https://yourserver:yourport/webhook/d1097152a4?action=toggle&itemName=LightBedroom

Then enter the Webhook ID (d1097152a4) in the app settings:

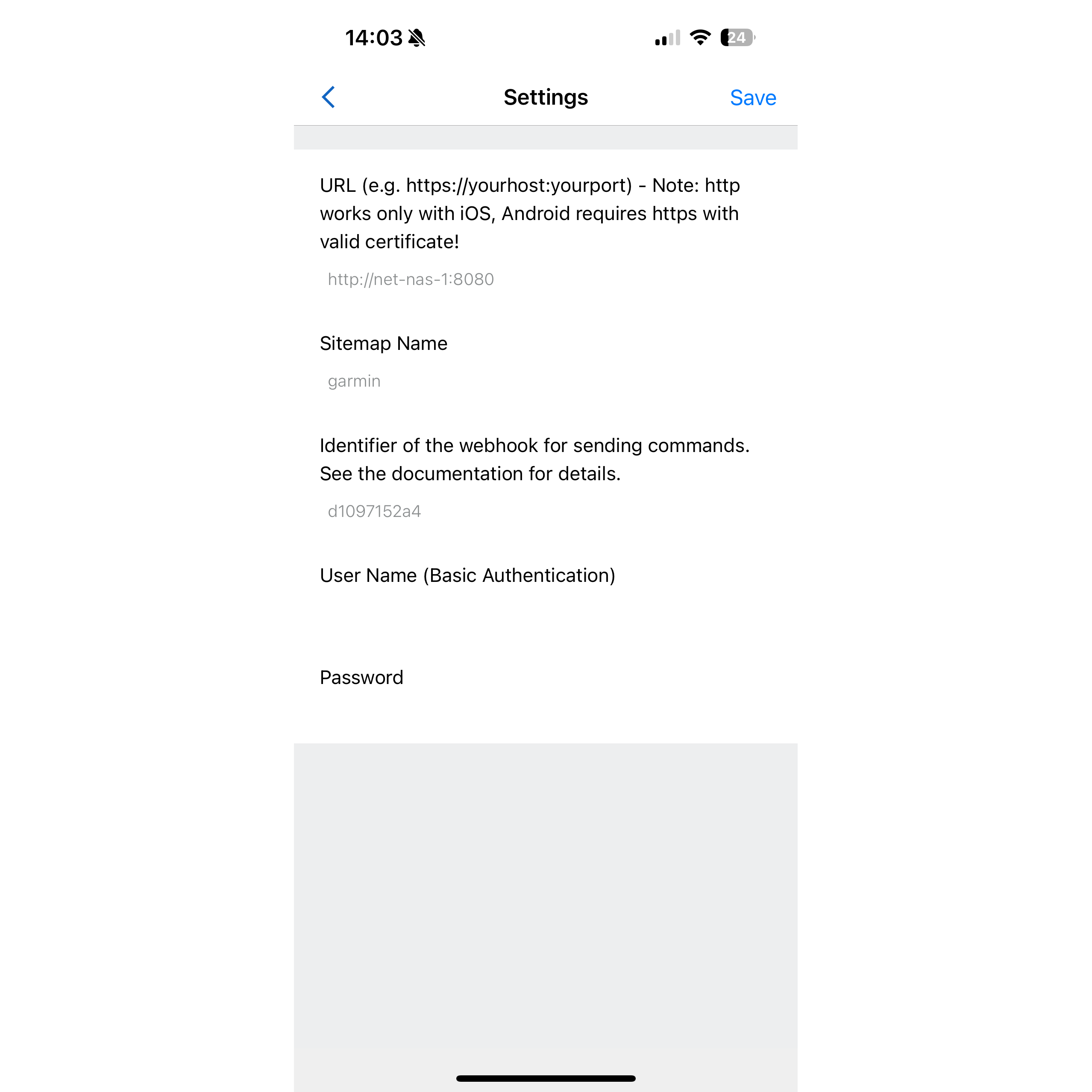

App Settings: Webhook

# Using the App

This section explains how to set up your openHAB sitemap for use with the app, outlines the supported Sitemap Widgets, and describes key aspects of the user interface.

# Sitemap Setup

Check the Sitemaps documentation to learn more about how sitemaps work.

The sitemap name configured in the app must match the filename of the sitemap, excluding the .sitemap extension. For example, if the file is named garmin_demo.sitemap, set the sitemap name in the app settings to garmin_demo.

When creating the sitemap through the UI, the sitemap nam configured in the app is uicomponents_ + sitemap name. For example, if the sitemap is named Garmin_Demo in the UI, set the sitemap name in the app settings to uicomponents_Garmin_Demo.

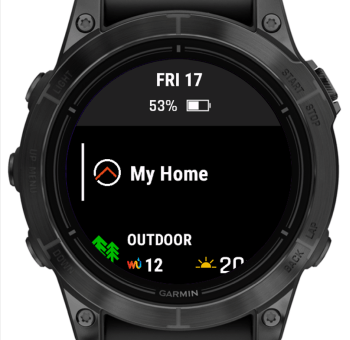

The label defined within the sitemap file is displayed in the app UI, such as in glances and other views.

sitemap garmin_demo label="My Home" {
}

# Supported Elements

The following element types are currently supported:

The following sections describe the supported parameters and the Sitemap Widget associated with each of these elements.

# Nested Elements

Nested elements are fully supported.

Certain sitemap elements — namely Frame, Text, and Group — can contain nested elements to help structure your sitemap hierarchically.

In sitemaps, Frame elements are used to visually separate areas on a page, while nested elements under Text and Group are presented as navigable subpages. The Garmin app adopts a menu-based navigation structure and implements nested elements under all three types as submenus.

  • For Frame and Text, nested elements must be defined manually. The only functional difference is that Text displays the associated item’s state, whereas Frame does not.
  • Group elements automatically populate their nested elements based on the members of the referenced group item.

For more details, refer to the sitemap documentation on nested elements.

# Frame

The ➡️ Frame element is one of three sitemap elements that support hierarchical structuring.

You can nest Frame elements within other Frame elements. While this is allowed by the specification, openHAB may log a warning when doing so — but it still functions as expected.

Technically, the specification does not permit mixing Frame elements alongside other element types at the same hierarchy level. However, in practice, this does work in openHAB. If you choose to use this unsupported approach, be aware that you're doing so at your own risk.

Here is an example of a sitemap containing three Frame elements.

sitemap garmin_demo label="My Home" {
 Frame label="Entrance Gates" {
  Switch item=EntranceGatesTrigger label="Open/Close" mappings=[OFF="", ON="OK"]
  Text item=EntranceGateStatus label="Status"
 }
 Frame label="Ground Floor" {
    // ...
 }
 Frame label="First Floor" {
    // ...
 }
}

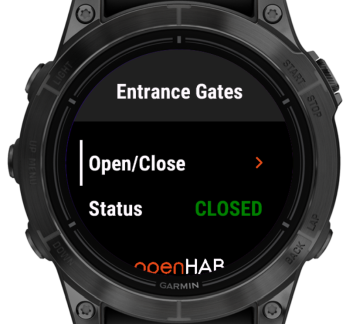

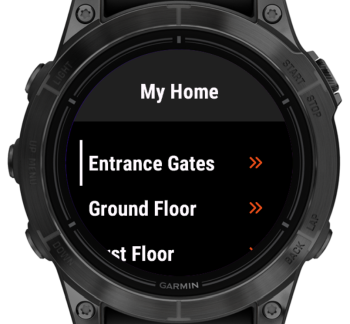

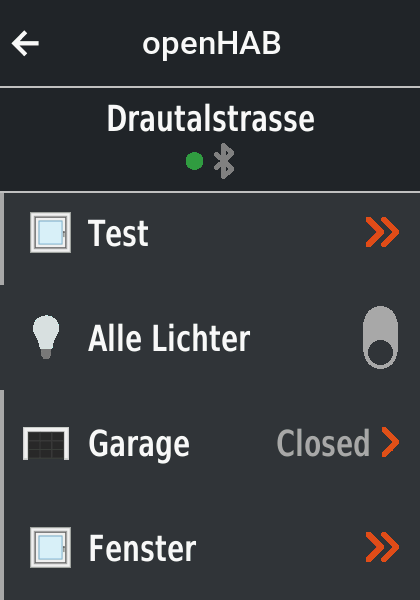

This configuration produces the following display in the UI:

# Default

The ➡️ Default element displays an item using the default widget determined by its type. This widget selection is handled automatically by openHAB.

The Garmin app supports Default only if the item’s type maps to one of the app’s supported widgets. If this is not the case, an error will be shown instead.

# Text

The ➡️ Text Sitemap Widget is used to display the current state of an item without allowing any user interaction.

Supported parameters:

  • label: the label shown in the UI.
  • item: the name of the openHAB item whose state should be displayed.

This widget is ideal for showing read-only information, such as temperature, system status, or sensor readings. It also supports nested elements, making it suitable for creating a hierarchical sitemap structure.

Example configuration:

In this example, the Text Sitemap Widget is used to display the status of entrance gates. Triggering the gates is handled by a separate Switch element.

Frame label="Entrance Gates" {
  Switch item=EntranceGatesTrigger label="Open/Close" mappings=[OFF="GO", ON="DONE"]
  Text item=EntranceGateStatus label="Status"
}

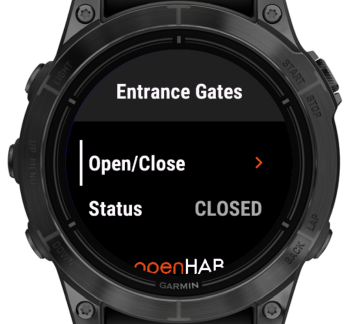

Resulting UI:

# Group

The ➡️ Group Sitemap Widget will present a submenu containing all the items in the associated item of type Group. This also works recursively, if the Group item itself contains other Group items, those will again open their own submenus.

Example configuration:

In this example, the CC_House_Lights item represents a hierarchical structure: it contains groups for each floor (e.g., the first floor), which in turn contain groups for individual rooms, and those room groups include the actual light switch items.

sitemap garmin_demo label="My Home" {
 Group item=CC_House_Lights label="All Lights"
  // ...
}

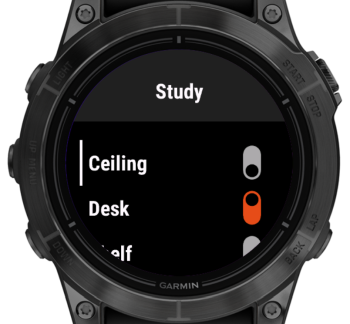

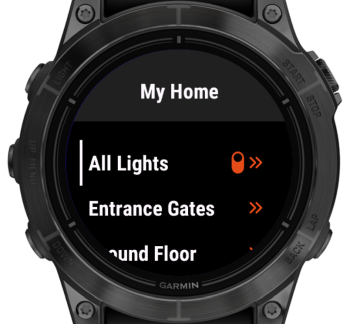

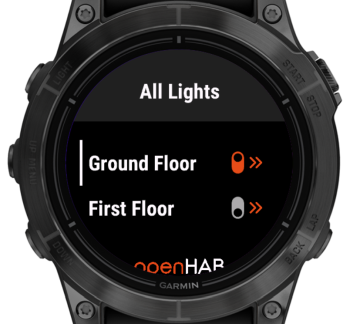

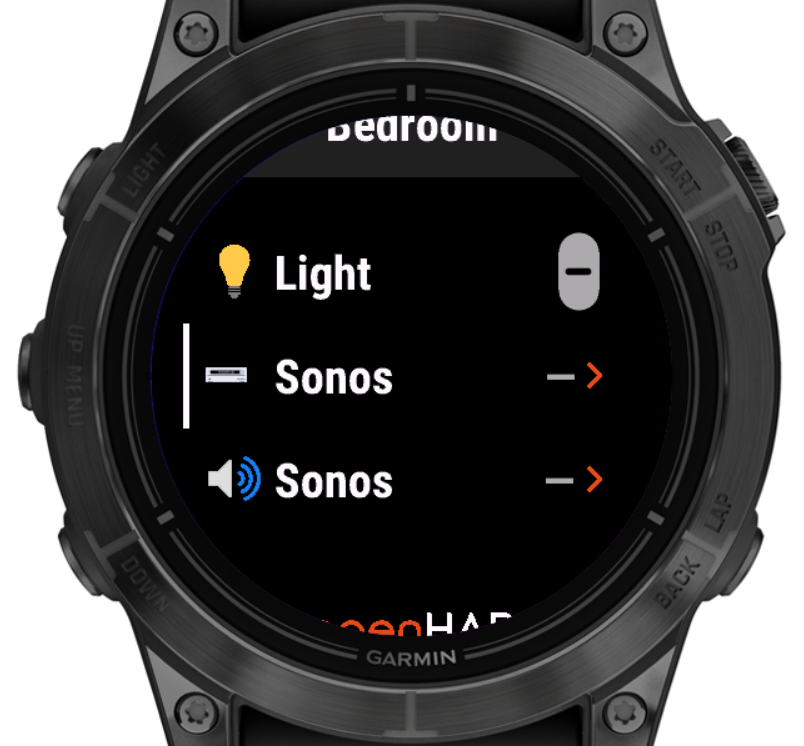

Resulting UI:

# Switch and Selection

The ➡️ Switch and ➡️ Selection widgets display the current state of an item and allows the user to send commands to change it.

In other UIs, the Switch and Selection widgets behave differently:

  • Switch presents all available options inline within the page.
  • Selection opens a dedicated selection dialog to choose a value.

However, due to the limited screen space on wearables, the Garmin app always opens a dedicated action menu whenever there are more than one or two options.

As a result, Selection is treated as a synonym for Switch, and both behave identically in the Garmin app.

Supported parameters:

  • label: Text displayed in the UI.
  • item: Name of the associated openHAB item.
  • mappings (optional): Defines command-to-label mappings for display and interaction.

The widget supports three usage variants:

  1. Toggle Switch – for binary items (ON/OFF) and Dimmer items.
  2. Rollershutter Control – a full-screen view for Rollershutter items with UP, DOWN, and STOP buttons.
  3. Generic Switch – for items with custom or multiple commands, defined via mappings or item metadata.
# Toggle Switch

This is the default behavior when:

  • No mappings are provided,
  • The item has no command descriptions,
  • The item is not of type Rollershutter.

The switch simply toggles between ON and OFF.

Note: If an item of type Dimmer is linked to a Switch and no state mappings are defined, a toggle switch will be displayed. The toggle will send ON and OFF commands. For display purposes, a Dimmer state of 0 is treated as OFF, while any value from 1 to 100 is considered ON.

Example:

Frame label="Switches" {
    Switch item=Light label="Light"
}

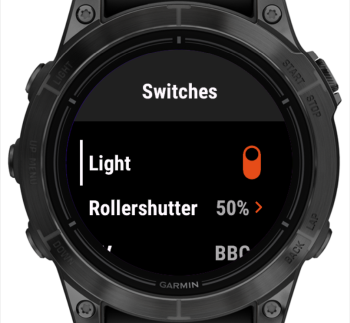

UI Preview:

# Rollershutter

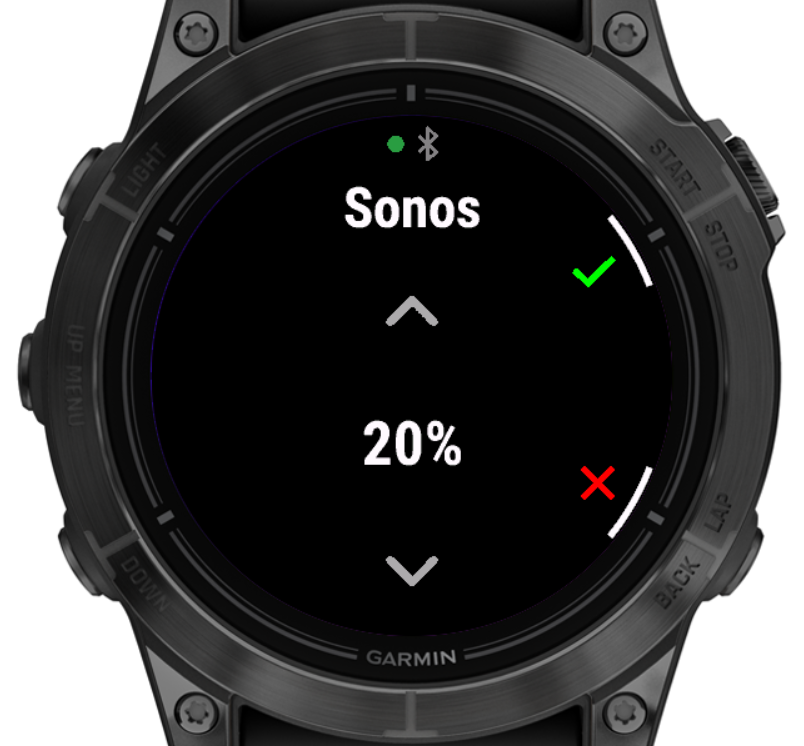

When the item type is Rollershutter, the widget opens a full-screen control with UP, DOWN, and STOP actions.

In the menu, the item displays a textual or percentage-based state:

  • mappings can be used to map numeric states (e.g., 0="Open", 100="Closed"), but only affect the menu label.
  • The full-screen view always shows numeric percentages for clarity, since states like 0 and 100 can reflect transitional movement (e.g., “opening”) rather than final state (“open”).

Example:

Frame label="Switches" {
    Switch item=Rollershutter label="Rollershutter" mappings=[0="Open", 100="Closed"]
}

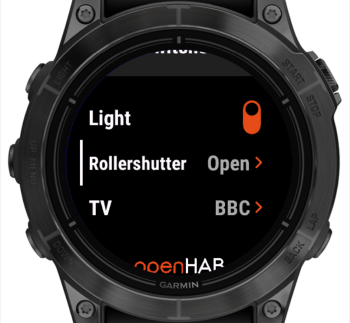

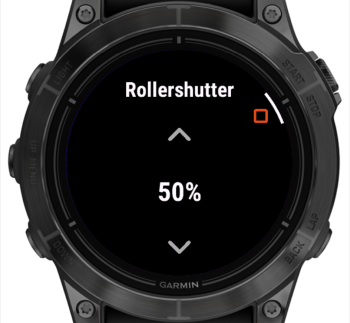

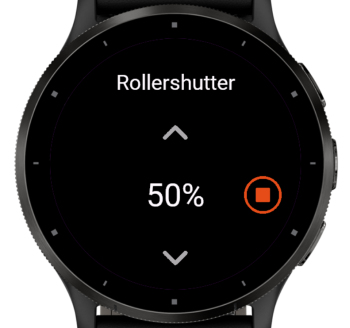

UI Preview:

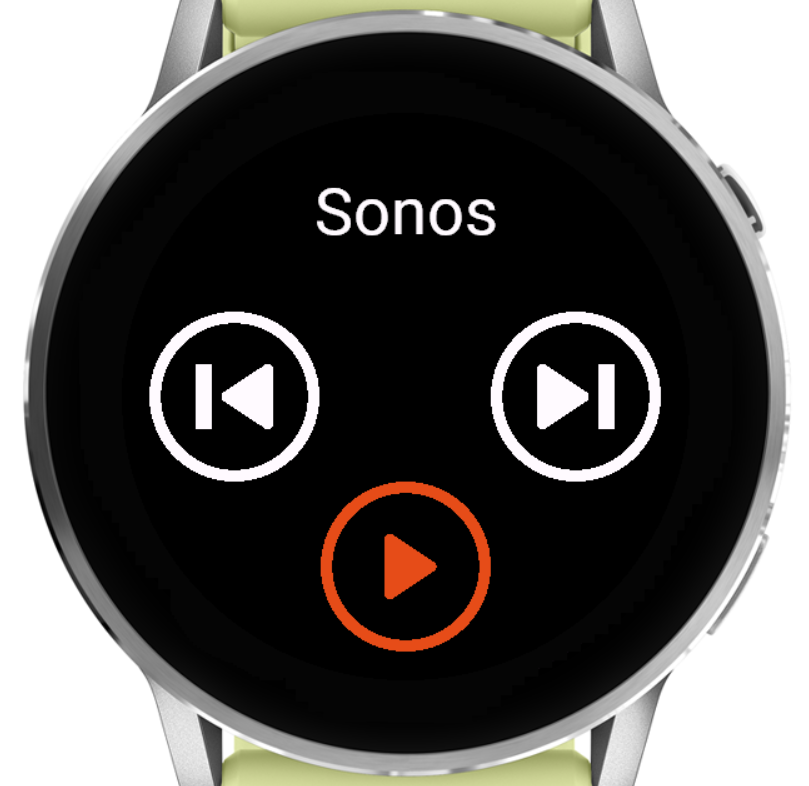

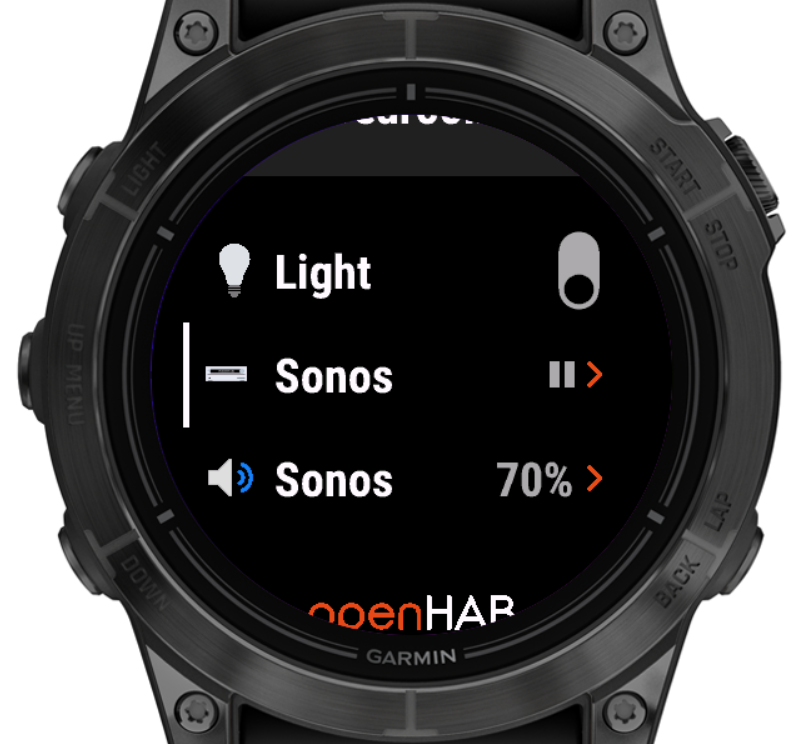

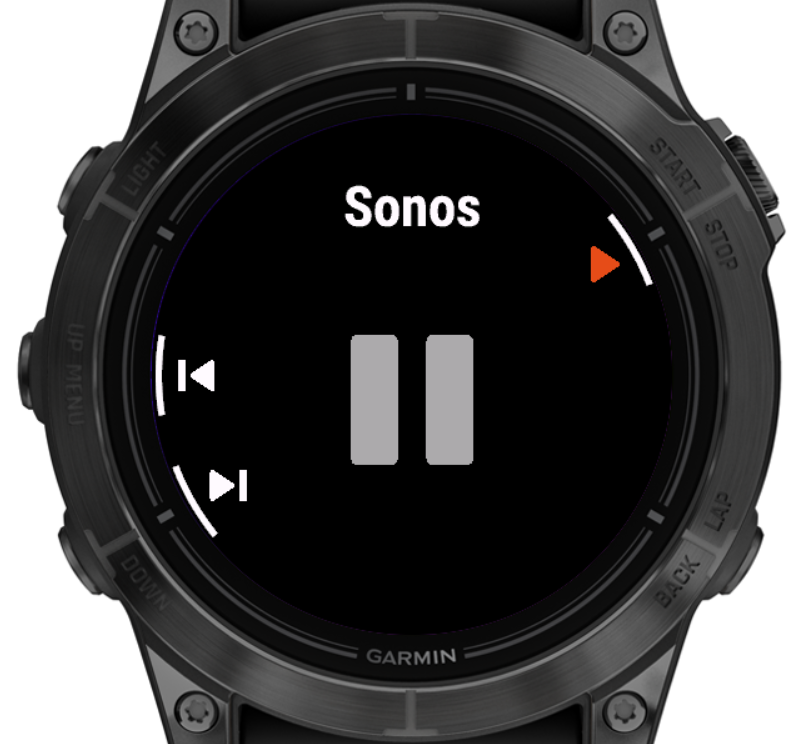

# Generic Switch

This variant is used for items that don’t fall under the previous two cases.

It supports multiple custom commands, defined either via:

  • mappings in the sitemap,
  • or command/state descriptions on the item (e.g., from a channel or metadata).

In the menu, the widget displays the current state as text:

  • If the state matches one of the mapped commands, the corresponding label is shown.
  • Otherwise, the raw state is displayed.

Tip: You can use an empty label in mappings if the item's function is self-explanatory from context.

Selection behavior:

  • If one command is defined, it is sent immediately when the item is selected.
  • If two commands are defined and one of them matches the current state, the other is sent immediately.
  • In all other cases, an action menu appears on the right side of the screen, allowing the user to select from the list of available commands. If the current state matches one of the commands, that command is not shown in the menu.

Example:

Frame label="Switches" {
    Switch item=TV label="TV" mappings=[0="ABC", 1="BBC", 2="CNN"]
}

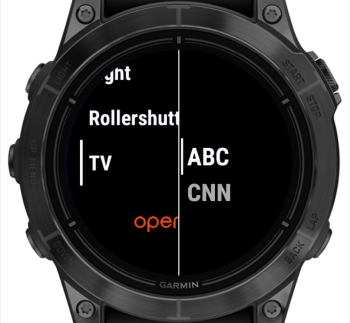

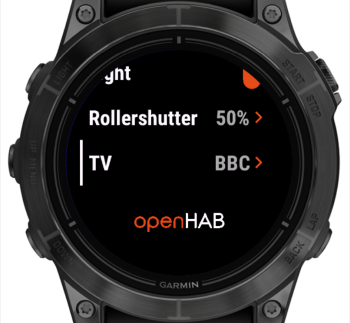

UI Rendering:

Note: The action menu shown in the right screenshot is a mockup. The actual appearance may vary depending on the device, as it uses a native UI component.

Example with Empty Mapping Entry:

Consider a garage door opener that acts as a toggle switch: sending an ON command triggers the gate to open or close, and the switch automatically resets to OFF after one second.

This can be configured in the sitemap like so:

sitemap garmin_demo label="My Home" {
 Frame label="Entrance Gates" {
  Switch item=EntranceGates_Operation label="Open/Close" mappings=[OFF="", ON="OK"]
  Text item=EntranceGates_Status label="Status"
 }
}

In this configuration:

  • The switch typically stays in the OFF state, where the "Open/Close" label is sufficient.
  • When pressed, it sends the ON command, briefly displays "OK" as feedback, then returns to OFF.

Here’s how the interface appears when the switch is in the OFF state:

# Setpoint and Slider

The ➡️ Setpoint and ➡️ Slider widgets are numeric controls used to display and adjust the numeric state of an item.

When selected, both widgets open a full-screen view for choosing a new value, which is then sent as a command to the item.

The only behavioral difference between the two is the Slider widget’s support for the releaseOnly parameter (see below).

Supported parameters:

  • label: the label displayed in the UI.
  • item: the name of the associated openHAB item.
  • minValue: lower bound of the selectable range (default: 0).
  • maxValue: upper bound of the selectable range (default: 100).
  • step: interval between selectable values (default: 1).
  • releaseOnly: (Slider only)
    • With releaseOnly: The value is only sent when the dialog is confirmed. Cancelling leaves the value unchanged.
    • Without releaseOnly: Values are sent immediately as the slider is moved. Confirming keeps the current value; cancelling reverts to the value before the dialog was opened.

Important note: While the default step=1 is consistent with openHAB’s default, it often results in too many steps (e.g., 100 steps for a range of 0–100), which is impractical for wearable interfaces. Increasing step to 10 reduces the number of steps to 10, making interaction much more manageable.

Example configuration:

Frame label="First Floor" {
  Slider item=Dimmer label="Dimmer" minValue=0 maxValue=100 step=10
  // ...
}

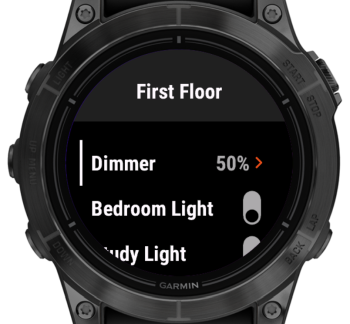

Resulting UI:

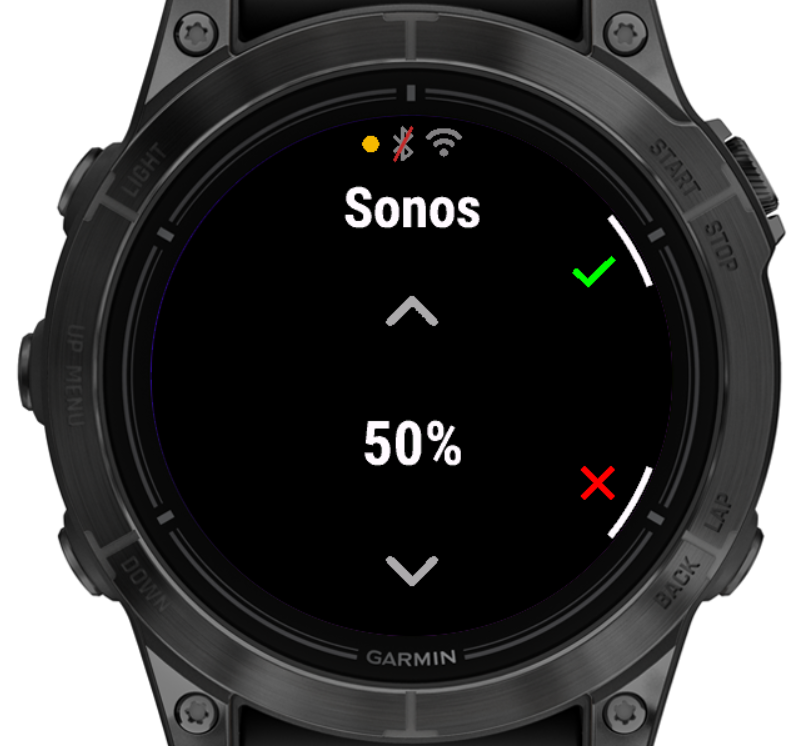

  • The lower-left screenshot shows the slider on a button-based device.

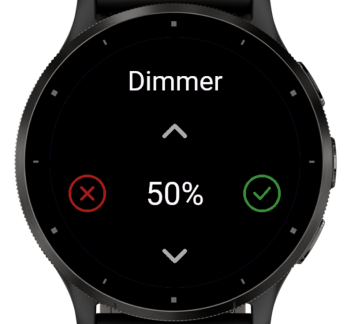

  • The lower-right screenshot shows the slider on a touch-based device.

Note: Even button-based devices may support touch input, and on those, the UI reacts to both. On button-based devices, use up/down to scroll through the values, press enter (upper-right button) to confirm or back (lower-right button) to cancel. On touch-based devices simply tap the icons corresponding to the desired action or value to make a selection.

# Dynamic Sitemaps

Of the available Dynamic Sitemaps features, the visibility parameter as well as label and icon colors are supported.

# Visibility

For usage details and examples, see the visibility documentation.

Here's an improved version with clearer phrasing, smoother flow, and a slightly more polished tone, while preserving the original structure:

# Label and Value Colors

For usage details and examples, refer to the label & value colors documentation.

The app supports both labelcolor and valuecolor attributes. Color values can be specified using either hexadecimal color codes (e.g., #FF0000) or named colors (e.g., red) as listed in the documentation.

Here’s an example configuration:

sitemap garmin_demo label="My Home" {
 Frame label="Entrance Gates" {
  Switch item=Entrance_Gates_Power label="Open/Close" mappings=[OFF="", ON="DONE"]
  Text item=Entrance_Gates_Status label="Status" valuecolor=[==OPEN="red", ==CLOSED="green", ==MOVING="yellow"]
 }
}

This results in the following display:

# Icons

For detailed usage and examples, refer to the sitemap icons documentation.

The Garmin app supports both the icon and staticIcon parameters, using a subset of the classic icon set. Where applicable, the app automatically selects an icon variant based on the item's state—for example, showing different icons for a light that is ON or OFF.

Below is a screenshot illustrating this behavior: The second menu item shows a filled lightbulb icon (indicating the light is ON), and the third item shows a state-aware rollershutter icon.

Tip: Even if you don't explicitly define icons in your sitemap, some may be applied automatically based on item metadata. To suppress this behavior, you can set the icon to an empty string in the sitemap: icon="".

Currently supported icons are:

  • batterylevel
  • blinds
  • door
  • garagedoor
  • humidity
  • light
  • lightbulb
  • lowbattery
  • poweroutlet
  • radiator
  • rollershutter
  • screen
  • slider
  • temperature

More icons can be added upon request. If you need support for additional icons, please post a request in the openHAB Community Discussion (opens new window).

# Settings Menu

To access the settings menu:

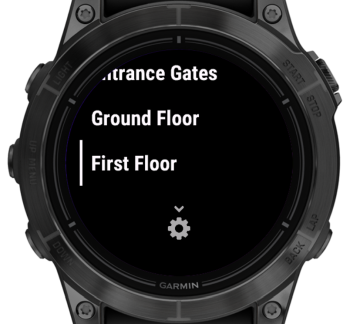

  • On button-based devices, scroll down on the home screen and continue past the ⚙️ icon.
  • On touch-based devices, tap the ⚙️ Settings entry in the home screen menu.

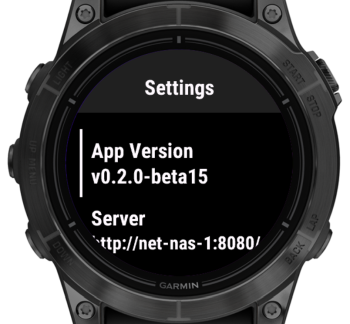

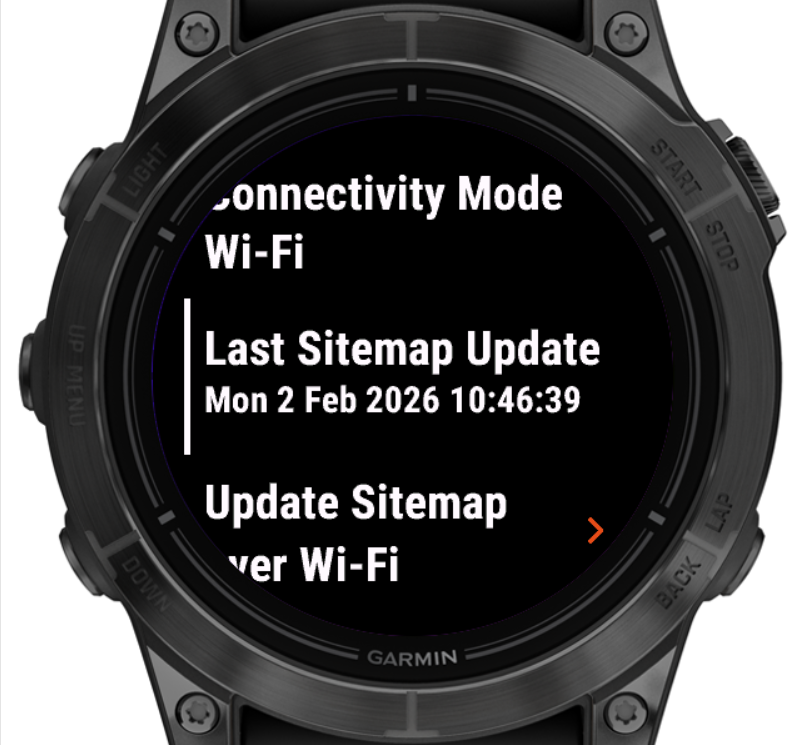

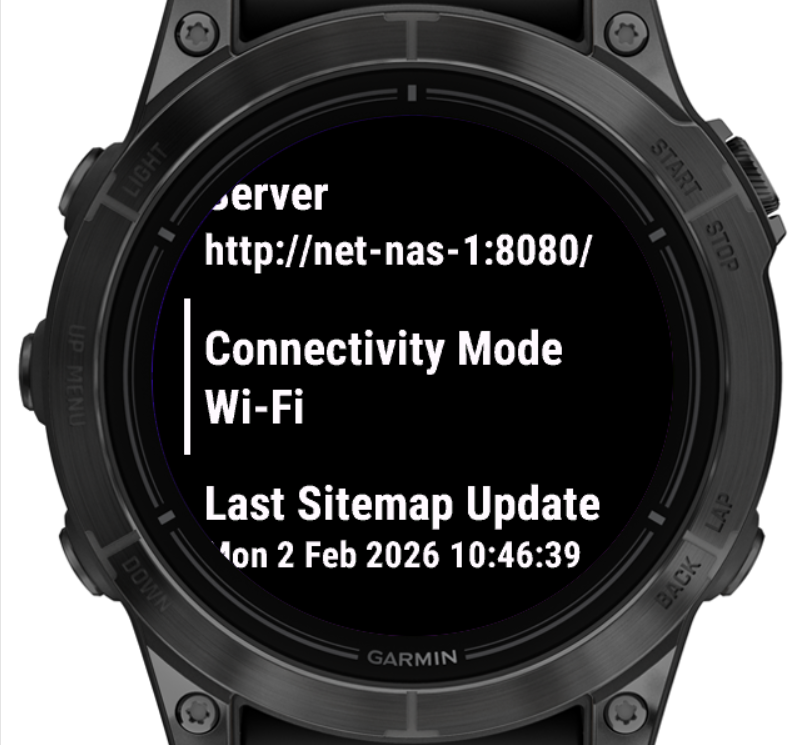

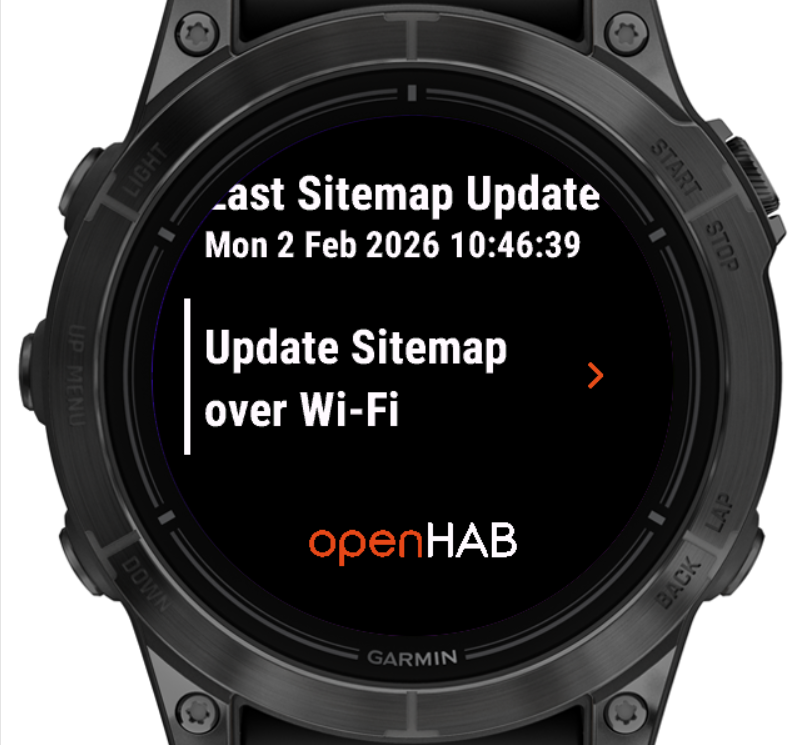

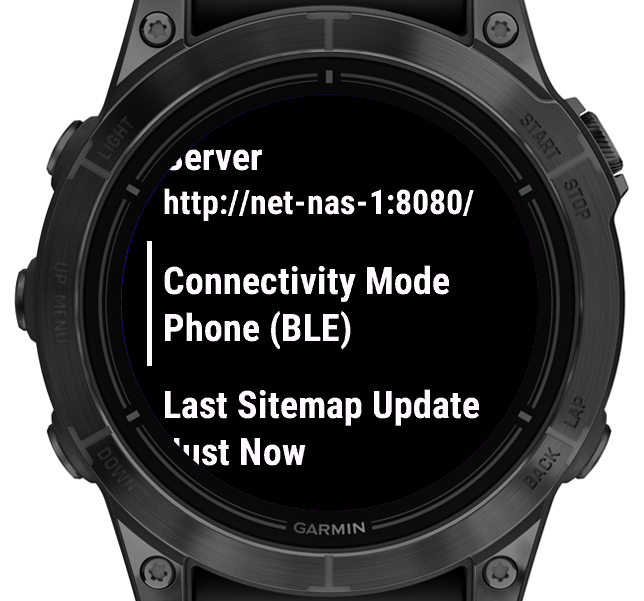

The settings menu currently displays the app version and server URL. Additional features may be added in the future when the app evolves.

# Troubleshooting

This section explains how the app handles errors and lists common issues you might encounter.

# How the App Handles Errors

The app distinguishes between temporary (non-fatal) and critical (fatal) errors:

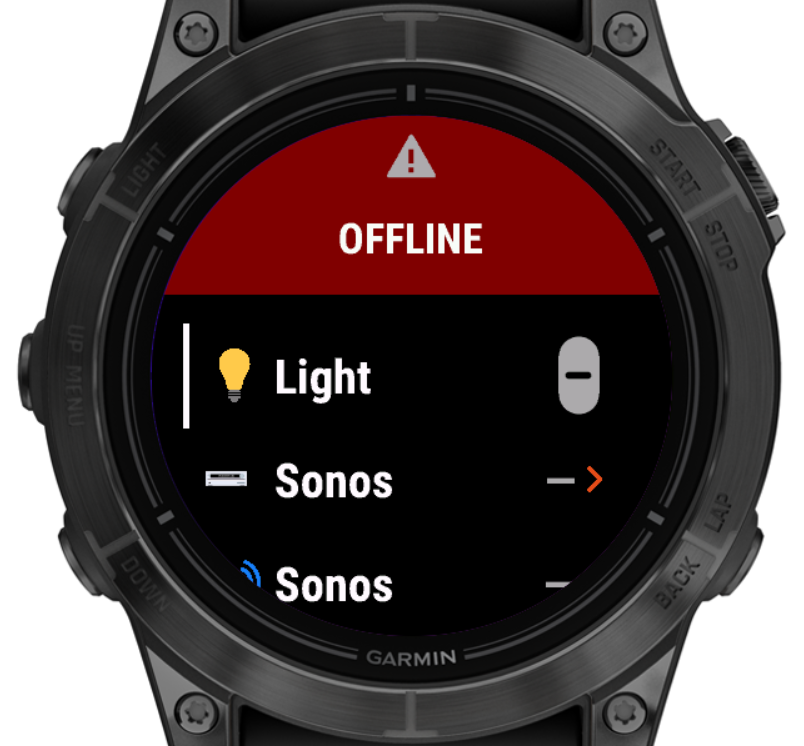

  • Non-fatal errors trigger a toast notification at the top of the screen, allowing you to continue using the app.
  • Fatal errors display a full-screen error view, halting further use until the issue is resolved.

Non-fatal errors include:

  • Most communication-related issues when requesting the sitemap.
  • All communication-related issues when sending a command.

Note: Non-fatal errors related to requesting the sitemap will become fatal if they persist for more than 10 seconds.

Immediately fatal errors include:

  • Certain communication errors when requesting the sitemap, specifically:

    • Error -1001 (see below)
    • HTTP error 404

  • Errors encountered while parsing the sitemap.

  • Any other unexpected errors or exceptions.

Note: Even after a fatal error, the app continues querying the sitemap. If a response is successfully processed, it returns to displaying the sitemap.

If "Suppress Empty Response Errors" is enabled:

When this option is enabled in the Settings, toast notifications for the following errors will be suppressed:

  • INVRES – Invalid response (error code -400)
  • EMRES – Empty response

However, if these errors persist for more than 10 seconds, they will be treated as fatal, and a full-screen error view will be shown.

# Communication Error Codes

To save space, communication errors shown in toast notifications follow this format:

X:NNNNNN

  • X indicates the source of the error:

    • S = sitemap polling
    • C = command sending

  • NNNNNN is the error code:

    • Positive values = HTTP status codes
    • Negative values = Garmin SDK error codes

For a full list of Garmin SDK error codes, see the Constant Summary section here: ➡️ Garmin Communications API Docs (opens new window)

Special error codes:

The following error codes are used for common communication issues and those without specific error codes:

  • NO PHONE – The watch is not connected to the smartphone (error codes -104 and -2).
  • INVRES – The response was invalid (error code -400).
  • EMRES – The response was empty.

# Common Issues

Error Description
C:415 HTTP response code 415 means Unsupported Media Type. This usually occurs when Native REST API Support is enabled in the Configuration, but your openHAB instance doesn’t support it. If you're using the backport (see Sending Commands and have recently updated openHAB to a newer version or installed a new binding, you may need to re-install the backport to restore compatibility.
S:EMRES myopenHAB currently experiences an intermittent issue (details here (opens new window)) where sitemap requests may return empty responses. When this happens, the app displays a non-fatal S:EMRES notification. Typically, the next request succeeds, so the issue doesn't escalate into a fatal error. To avoid seeing these notifications, you can enable the Suppress empty response errors option in the Configuration settings.
Caught a mistake or want to contribute to the documentation? Edit this page on GitHub (opens new window)

← Windows 10 App →
