# Home Connect Direct Binding

The Home Connect Direct Binding integrates Home Connect (opens new window) enabled devices into openHAB via your local network. Unlike the standard Home Connect binding, this implementation communicates directly with your appliances, ensuring reliable, low-latency operation without requiring cloud access.

# Supported Appliances

The following appliance types are supported. Appliance types marked with an asterisk (*) are currently in a beta stage and have not yet been extensively tested.

Appliance Type Thing Type ID
Dishwasher dishwasher
Cook Processor (Cookit) cookprocessor
Washer washer
Washer / Dryer Combination washerdryer
Dryer dryer
Oven oven
Warming Drawer* warmingdrawer
Coffee Machine coffeemaker
Hood* hood
Cooktop (Hob)* cooktop
Fridge / Freezer* fridgefreezer
Generic (other types) generic

# Prerequisites & Initial Setup

Before adding things to openHAB, you must load the Appliance Profiles. These profiles contain the technical descriptions (keys, enumeration values, etc.) required for the binding to communicate with your specific hardware.

# Load Appliance Profiles

The binding includes a dedicated web console for profile management.

  1. Access the Console: Open your browser and navigate to:
    http(s)://[YOUR_OPENHAB_IP]:[PORT]/homeconnectdirect
    (e.g., http://192.168.178.100:8080/homeconnectdirect)
  2. Go to Appliance Profiles: Open the "Profiles" menu item.
  3. Upload Profiles: Click the Upload Profile button in the top-right corner.

IMPORTANT: The binding cannot fetch profiles automatically from the BSH cloud. You must use an external tool to download your profiles first.

Recommended Tool: HomeConnect Profile Downloader (opens new window)
Download the latest version from the Releases page (opens new window).

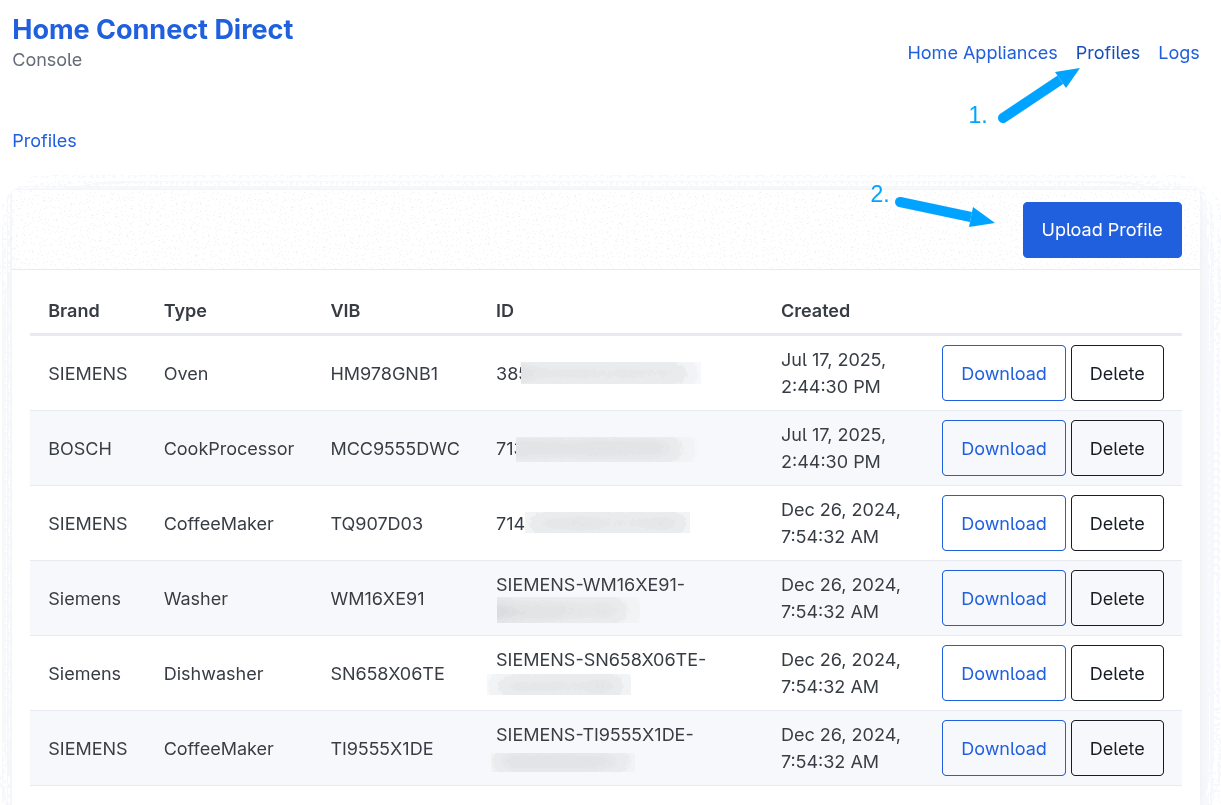

Home Connect Direct Console - Profile UI

# Discovery & Configuration

# Creating Things

Once profiles are uploaded, you can add your appliances:

  • Automatic Discovery: The binding uses mDNS to scan your local network. Discovered devices will appear in the openHAB Inbox automatically.
  • Manual Configuration: You can manually create things via the UI or .things files using the parameters below.

# Thing Configuration Parameters

Parameter Type Description Required
haId Text The unique Home Appliance ID (found in the Home Connect Direct console). Yes
address Text The local IP address or hostname of the appliance. Yes
connectionRetryDelay Integer Delay in minutes before attempting a reconnect (1-60, default: 1). No

# Channels

The binding offers two types of channels: Preconfigured (standard functions) and Custom (custom attributes).

# Preconfigured Channels

These channels provide immediate access to common functions. Available channels vary by appliance type. Some channels are added dynamically based on the features supported by your specific appliance model (e.g., different heating modes for an oven).

# General Channels

Channel ID Item Type Access Description Supported Appliance Types
power-state Switch R/W Controls and monitors the appliance power state. Dishwasher, Cook Processor, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer, Hood, Cooktop
door Contact R Indicates if the door is Open or Closed. Dishwasher, Washer, Washer/Dryer, Dryer
operation-state String R Current state (e.g., Run, Ready, Finished). Dishwasher, Cook Processor, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer, Hood, Cooktop
remote-control-start-allowed Switch R Indicates if remote operation is enabled. Dishwasher, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer, Hood
child-lock Switch R/W The child lock state. Cook Processor, Washer, Washer/Dryer, Dryer, Oven, Cooktop
active-program String R The program currently running. Changes to UNDEF when no program is active (e.g., when paused or idle). Dishwasher, Cook Processor, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer, Hood, Cooktop
selected-program String R/W The program currently selected on the device. Dishwasher, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer
remaining-program-time Number:Time R Estimated time remaining. Dishwasher, Washer, Washer/Dryer, Dryer, Oven, Warming Drawer
program-progress Number:Dimensionless R Progress in percent (0-100%). Dishwasher, Cook Processor, Washer, Washer/Dryer, Dryer, Coffee Maker, Oven, Warming Drawer
program-command String W Send commands like start, pause, or resume. Dishwasher, Cook Processor, Washer, Washer/Dryer, Dryer
command String W Send specific operation commands to the appliance. All
raw-message String W Advanced: Send raw JSON payloads.
Example (Start coffee program): {"action": "POST", "resource": "/ro/activeProgram", "data": [{"program": 8217}]}		 All

# Dishwasher Channels

Channel ID Item Type Access Description
salt-lack Switch R Indicates if dishwasher salt is empty.
rinse-aid-lack Switch R Indicates if dishwasher rinse aid is empty.
salt-nearly-empty Switch R Indicates when the dishwasher salt is almost empty.
rinse-aid-nearly-empty Switch R Indicates when the dishwasher rinse aid is almost empty.
machine-care-reminder Switch R Indicates whether the dishwasher needs cleaning.
program-phase String R The program or process phase of the dishwasher.
dishwasher-vario-speed-plus Switch R/W High-speed cleaning option.
dishwasher-intensiv-zone Switch R/W Increases spray pressure in the lower basket.
dishwasher-brilliance-dry Switch R/W Enhances the drying process for glassware.

# Washer, Dryer & Washer/Dryer Channels

Channel ID Item Type Access Description
drum-clean-reminder Switch R Indicates whether the drum needs cleaning.
laundry-load-information Number:Mass R The current laundry load information.
laundry-load-recommendation Number:Mass R The recommended load for the current program.
process-phase String R The current process phase of the appliance.
washer-temperature String R/W The temperature of the washing program.
washer-spin-speed String R/W The spin speed of the washing program.
washer-speed-perfect Switch R/W Reduces the program duration.
washer-water-plus Switch R/W Increases the water level.
washer-prewash Switch R/W Adds a prewash cycle.
washer-rinse-hold Switch R/W Stops the cycle before the final spin.
washer-less-ironing Switch R/W Reduces creasing.
washer-silent-wash Switch R/W Reduces noise during operation.
washer-soak Switch R/W Adds an immersion phase for stubborn dirt.
washer-rinse-plus String R/W Adds additional rinse cycles.
washer-stains String R/W Optimizes the cycle for specific stain types.
drying-target String R/W Specifies the desired dryness setting (Dryer, Washer/Dryer).
wrinkle-guard String R/W Prevents laundry from creasing after the cycle (Dryer, Washer/Dryer).
idos1-active Switch R/W Whether i-Dos 1 is enabled for the washing program (dynamically added).
idos2-active Switch R/W Whether i-Dos 2 is enabled for the washing program (dynamically added).
idos1-fill-level-poor Switch R Indicates whether i-Dos 1 is almost empty (dynamically added).
idos2-fill-level-poor Switch R Indicates whether i-Dos 2 is almost empty (dynamically added).

# Oven & Warming Drawer Channels

Channel ID Item Type Access Description
oven-program-command String W Controls program execution (start, pause, resume, stop).
duration Number:Time R/W The duration of the program (Oven).
setpoint-temperature Number:Temperature R/W Target temperature.
temperature-{n} Number:Temperature R The current cavity temperature (dynamically added, where {n} is the cavity number).
cavity-light-{n} Switch R/W The cavity light state (dynamically added, where {n} is the cavity number).
door-{n} Contact R Indicates if the door is Open or Closed (dynamically added, where {n} is the cavity number).
meat-probe-temperature-{n} Number:Temperature R The current meat probe temperature (dynamically added, where {n} is the cavity number).
meat-probe-plugged-{n} Switch R Indicates if the meat probe sensor is plugged in (dynamically added, where {n} is the cavity number).

# Coffee Maker Channels

Channel ID Item Type Access Description
cleaning Number R Countdown until cleaning is due.
calc-n-clean Number R Countdown until calc 'n' clean is due.
descaling Number R Countdown until descaling is due.
water-filter Number R Countdown for water filter replacement.
water-tank-empty Switch R Indicates when the water tank is empty.
water-tank-nearly-empty Switch R Indicates when the water tank is almost empty.
drip-tray-full Switch R Indicates when the drip tray is full.
empty-milk-tank Switch R Indicates when the milk tank is empty.
bean-container-empty Switch R Indicates when the bean container is empty.
process-phase String R The current process phase of the coffee maker.
coffeemaker-program-command String W Controls program execution (start, stop).

# Hood Channels

Channel ID Item Type Access Description
cooking-light Switch R/W The functional light state.
cooking-light-brightness Number R/W The brightness of the functional light.
button-tones Switch R/W The button tones setting.
venting-level String R/W Venting level of the hood.
intensive-level String R/W Intensive venting level of the hood.

# Cooktop Channels

Channel ID Item Type Access Description
button-tones Switch R/W The button tones setting.

# Fridge / Freezer Channels

Channel ID Item Type Access Description
refrigerator-door Contact R Indicates if the refrigerator door is Open or Closed (dynamically added).
freezer-door Contact R Indicates if the freezer door is Open or Closed (dynamically added).
door Contact R Indicates if the door is Open or Closed (dynamically added - fallback if specific doors absent).
setpoint-temperature-refrigerator Number:Temperature R/W Target temperature of the refrigerator compartment (dynamically added).
setpoint-temperature-freezer Number:Temperature R/W Target temperature of the freezer compartment (dynamically added).
setpoint-temperature-chiller Number:Temperature R/W Target temperature of the chiller compartment (dynamically added).
super-mode-refrigerator Switch R/W Enables Super Cooling mode for the refrigerator (dynamically added).
super-mode-freezer Switch R/W Enables Super Freezing mode for the freezer (dynamically added).
dispenser-enabled Switch R/W Enables or disables the dispenser (dynamically added).
dispenser-party-mode Switch R/W Enables or disables the dispenser party mode (dynamically added).
dispenser-water-filter-saturation Number:Dimensionless R Water filter saturation level of the dispenser in percent (dynamically added).
chiller-preset String R/W Allows selecting a predefined cooling mode for the chiller compartment (dynamically added).

# Custom Channels

Custom channels allow you to monitor any internal value or device description attribute available in the appliance profile. This is useful for advanced scenarios or accessing functions not covered by standard channels.

The binding's web console includes an openHAB Configuration Generator to help create the necessary YAML or DSL for these channels. You can access it by monitoring an appliance and clicking the openHAB icon next to any value or description key.

# 1. Value Channels

These channels reflect the current actual values of the home appliance. They answer the question: "What is the current state?"

Examples: "How hot is the oven?", "Is the door open?", "Which program is running?"

Channel Type ID Item Type Config Parameters Description
switch Switch valueKey For boolean values (true/false).
string String valueKey For text or enumeration values.
number Number valueKey, unit For numeric values. unit is optional (e.g., "°C", "%").
trigger — valueKey Trigger channel that fires events (e.g., for event keys).
enum-switch Switch valueKey, onValue Read-only switch that maps enumeration values to ON/OFF. onValue is a comma-separated list of enum value keys that map to ON (case-insensitive).

# 2. Device Description Channels

These channels describe the capabilities and constraints of the appliance. They answer the question: "What is currently possible?"

Home Connect appliances are dynamic; allowed ranges or available options change based on the selected program or operation state. Examples: "What is the maximum allowed temperature for the current program?", "Can I currently change the power state (Read/Write) or is it locked (Read-Only)?", "Is a specific option available right now?"

Channel Type ID Item Type Config Parameters Description
device-description-switch Switch descriptionKey, attribute For boolean attributes (e.g. available).
device-description-string String descriptionKey, attribute For text attributes (e.g. access, enumerationType).
device-description-number Number descriptionKey, attribute For numeric attributes (e.g. min, max, stepSize).

Supported Attributes:

  • access: Current access rights (read/write).
  • available: Whether the feature is currently available.
  • min: Minimum allowed value.
  • max: Maximum allowed value.
  • stepSize: Step size for value adjustments.
  • enumerationType: The UID of the enumeration type.
  • enumerationTypeKey: The key of the enumeration type.

# Full Example

# demo.things

Thing homeconnectdirect:dishwasher:myDishwasher "Dishwasher" [ haId="BSH-DISHWASHER-XXXX", address="192.168.1.50" ]
Thing homeconnectdirect:oven:myOven "Oven" [ haId="BSH-OVEN-XXXX", address="192.168.1.51" ] {
    Channels:
        Type number : currentTemp "Internal Temp" [ valueKey="Cooking.Oven.Status.CurrentCavityTemperature", unit="°C" ]
        Type trigger : programFinished "Program Finished" [ valueKey="BSH.Common.Event.ProgramFinished" ]
        Type enum-switch : doorOpen "Door Open" [ valueKey="BSH.Common.Status.DoorState", onValue="Open" ]
}

# demo.items

// Dishwasher
Switch  Dishwasher_Power       "Power"              { channel="homeconnectdirect:dishwasher:myDishwasher:power-state" }
Contact Dishwasher_Door        "Door"               { channel="homeconnectdirect:dishwasher:myDishwasher:door" }
String  Dishwasher_Status      "Status [%s]"        { channel="homeconnectdirect:dishwasher:myDishwasher:operation-state" }
Number:Time Dishwasher_Time    "Remaining [%d s]"   { channel="homeconnectdirect:dishwasher:myDishwasher:remaining-program-time" }

// Oven
Number:Temperature Oven_Temp   "Temp [%.1f %unit%]" { channel="homeconnectdirect:oven:myOven:currentTemp" }

# Binding Console (Web UI)

The binding includes a built-in web console (accessible at http://[YOUR_OPENHAB_IP]:[PORT]/homeconnectdirect) that serves as a powerful tool for setup, monitoring and troubleshooting.

# Main Sections

  • Home Appliances: Lists all discovered and configured appliances. It provides a quick overview of their connection status (ONLINE/OFFLINE), hardware details (Brand, Type, VIB), and local network addresses.
  • Profiles: Central management for Appliance Profiles. Here you can upload new profiles (required for initial setup), download existing ones for backup, or delete outdated profiles.
  • Logs: Allows management of message logs stored on the openHAB server. You can import external logs (e.g., from HomeCap (opens new window) or the Home Connect Appliance Proxy (opens new window)), download logs for analysis or view them directly in the browser.

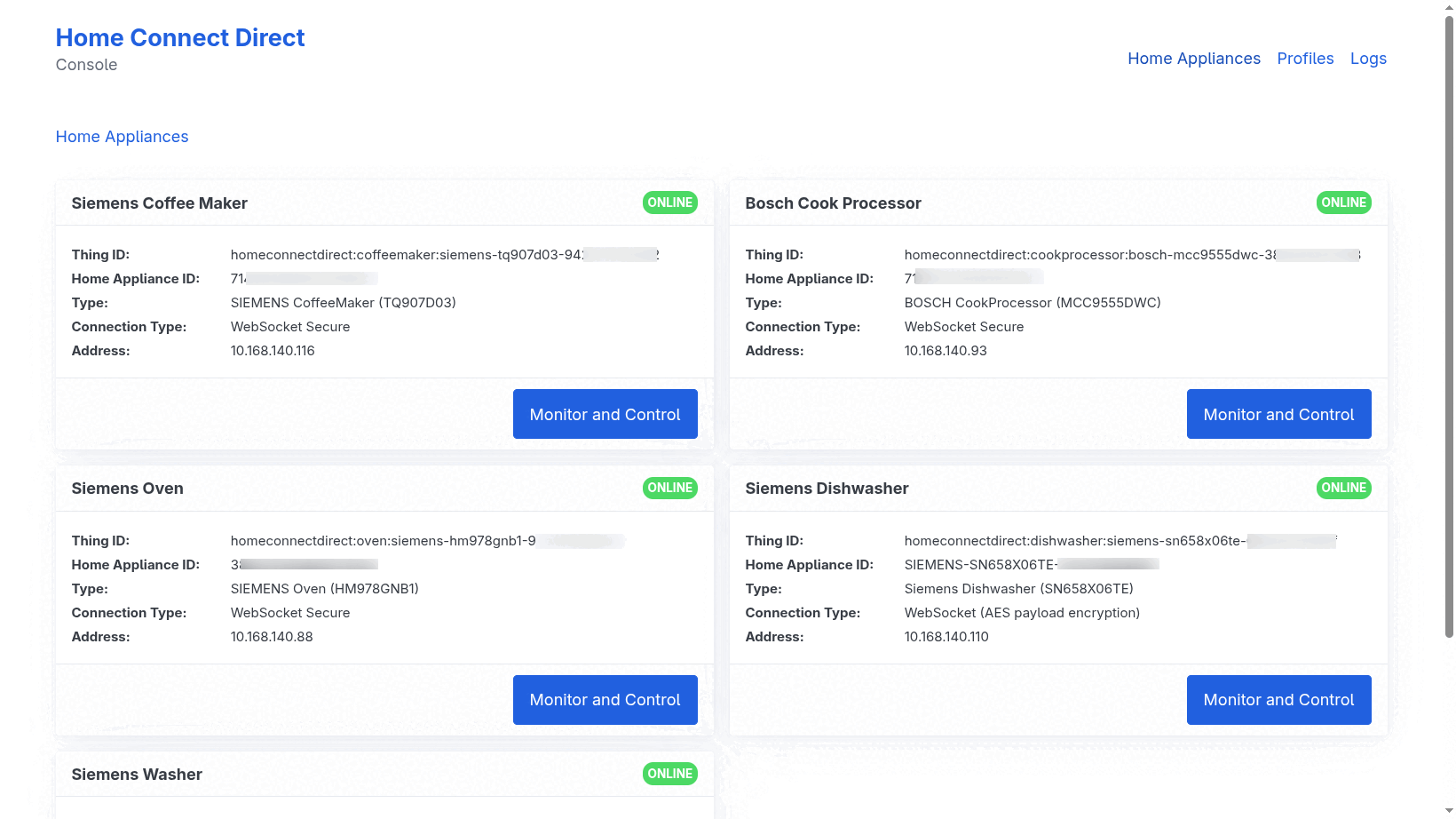

Home Appliances UI

# Monitoring and Control

By clicking "Monitor and Control" on an appliance, you enter a real-time diagnostic view:

  • Live Message Stream: View every message exchanged between openHAB and the appliance in real-time via WebSockets.
  • Advanced Filtering: Narrow down the message stream by value keys, description keys, resource paths, actions (GET/POST/NOTIFY), or specific time ranges.
  • Deep Inspection: Click on any message to view its raw JSON payload, formatted values, or device description changes. You can also browse the internal Device Description tree.
  • openHAB Configuration Generator: Next to each value or description attribute, you'll find an openHAB icon. Clicking it opens a generator that provides ready-to-use YAML or DSL snippets for creating custom channels (see Custom Channels).
  • Raw Messaging: Send manual GET, POST, or NOTIFY commands directly to the appliance for testing and advanced control.

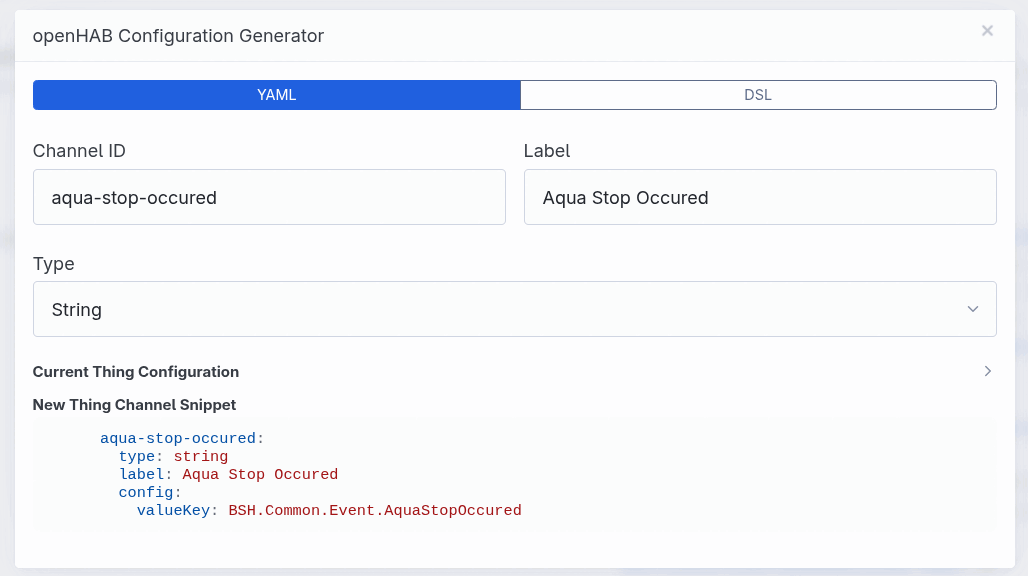

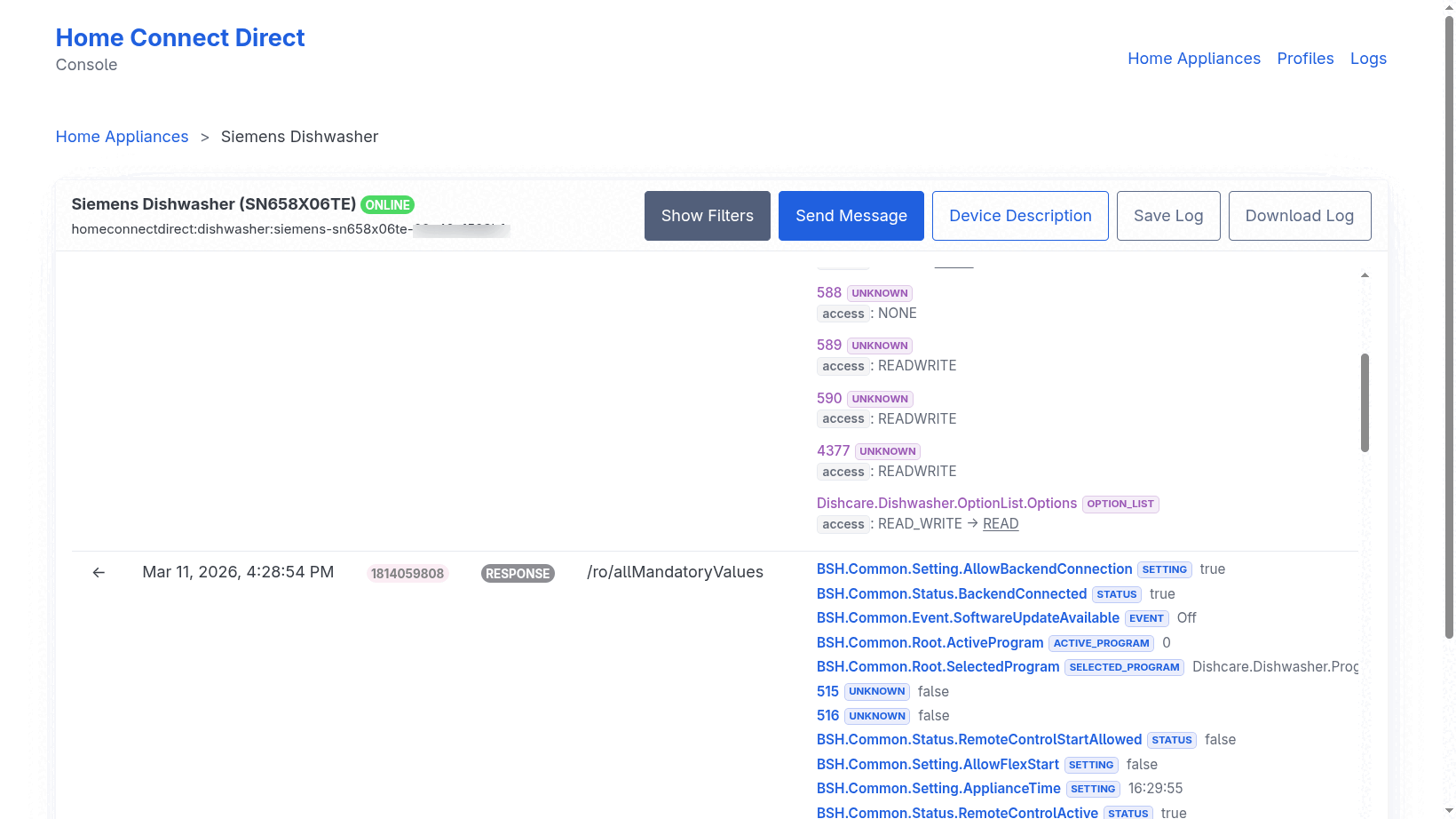

Monitor and Control UI Monitor and Control UI - openHAB Configuration Generator

# Binding Configuration

The binding offers global settings to secure the web console and manage the internal message log.

  • Console Security: You can enable a login for the Home Connect Direct web console (loginEnabled). When enabled, a password (loginPassword) must be provided.
  • Message Log Size: The messageQueueSize determines how many messages are kept in the internal log displayed in the console (default: 300).

# Configuration Methods

  • openHAB UI: Navigate to Settings -> Add-on Settings -> Home Connect Direct.

  • OSGi Console:

    config:edit binding.homeconnectdirect
config:property-set loginEnabled true
config:property-set loginPassword your_secure_password
config:property-set messageQueueSize 500
config:update

# FAQ

Q: Are robot vacuums supported?
A: No. Robot vacuums appear to communicate exclusively via the cloud. This binding is designed for direct local communication only.

Q: How do I find the haId of my device?
A: You can find it via the openHAB Inbox scan (Discovery). Alternatively, open the binding's web console and navigate to the Profiles tab. After importing a profile, the specific Device ID is displayed there.

Q: I have a problem or found a bug.
A: Please use the openHAB Community channels. It is helpful to create a log file using the Logs feature in the binding's web console, which you can provide for troubleshooting.

# Credits

This binding is built upon the outstanding research and work of the following projects:

A big thank you to the contributors of these projects for their excellent work!

Caught a mistake or want to contribute to the documentation? Edit this page on GitHub (opens new window)

← HomeKit →
